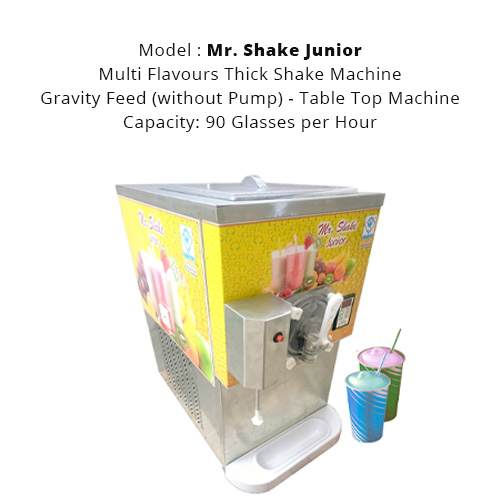

Mr. Shake Junior
Description
Multi Flavours Gravity Feed (without Pump) & Table Top Machine
Description :-
Multi flavor machine with Gravity feed system(increase item volume up to 40%) with connected blender. Accessible in 1 Phase. Perfect for dessert parlors, Multiplex, Restaurants, Mall, Motels and so on.
Features :-
• Compact model and elegant look.
• New tropicalized design resulting in high product output.
• The controls are easy to operate.
• Provide gravity-feed valve system that mixes air naturally, overrun (up to 40 %) .
• Stainless steel freezing cylinders with direct expansion-cooling system ensuring rapid operation.
• Special auto regulation beater controlled by Hardness Control, an automatic control system for product consistency.
• Specially crafted beaters with delrin beater blades.
• Upper refrigeration tank, which helps in overnight storage of mix.
• Insulated dispense head made of excellent Insulating material.
• The machine with air-cooled condenser.
• Environmental friendly 'CFC" free refrigerant and 'CFC' free thermal insulation.
• Used SS pre-coated sheet for out-side cover.
• Provided with attached mixer.
• Also Specialized for slush product.
Specifications
| Number of Flavours | Multi Flavours |
|---|---|
| Number of Flavours | Multi Flavours |
| Output | 22.5 Ltr. Per Hour (13 KG Per Hour) |
| Tank (Hopper) Capacity :0 | 10 Ltr. |
| Pump | No (It gives over run Increase the ice cream volume upto 40%) |
| Capacity | 90 Glasses per Hour |
| Refrigerant | R-404A / R-22 |
| Installed Power 0 | 1.2 kw0 |
| Condenser 0 | Air-Cooled / Water-Cooled (As per requirement) |
| Placing Type | Table Top Model000 |
| Frequency | 50 HZ.0 |
| Phase | Single Phase |
| Dimension | 440 X 760 X 800 (W x D x H) |
| Voltage | 220 Volt.0 |
